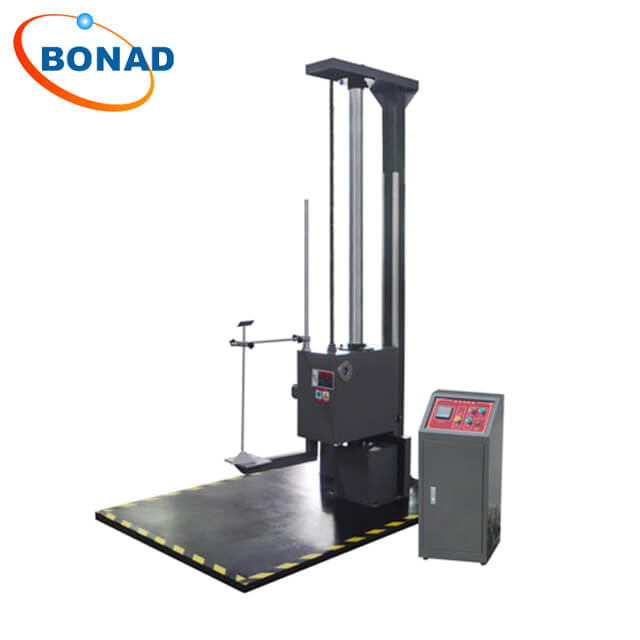

Battery Package Drop Test Machine BND-F-315C

Product Description：Name：Battery Package Drop Test MachineType：BND-F-315CUse:This machine is designed to test the damage of the product package from falling, and to evaluate the impact strength during transportation and handling.Standards :ISO 2248 JIS Z0202-87 GB/T4857.5-92 UL2054 QC/T 743、744 YD 1268 GB/T 18287 SJ/T 11169 SJ/T 11170 MT/T1051 GB 8897

Product Description：

Name：Battery Package Drop Test Machine

Type：BND-F-315C

Use:

This machine is designed to test the damage of the product package from falling, and to evaluate the impact strength during transportation and handling.

Standards :

ISO 2248 JIS Z0202-87 GB/T4857.5-92 UL2054 QC/T 743、744 YD 1268 GB/T 18287 SJ/T 11169 SJ/T 11170 MT/T1051 GB 8897

Test principle:

The test sample is automatically raised to a predetermined height, and then allowed to fall freely in a predetermined state to collide with the impact table.

Technology parameters:

Model	BND-F-315C
Drop height	300～1500MM
Test method	Surface, edge, and corner fall in all directions
Drop method	Free drop
Drop height error	±10mm
Drop plane error	≤1°
Test load	0～80kg
Sample Max. Size	W800×D800×H1000（mm）
Arm size	290×240×8mm
Drop floor size	(L×W)1700×1200mm
Drop floor thickness	10mm（Solid iron plate）
transfer method	Electric drive
Display method	Digital height display
Control box size	(L×W×H)350×350×1100mm
Outer size	(L×W×H)1700×1200×2315mm
weight	300Kg
Power supply	AC 3ψ 5W 380V 50Hz
Total power	1500W
