Product Description：

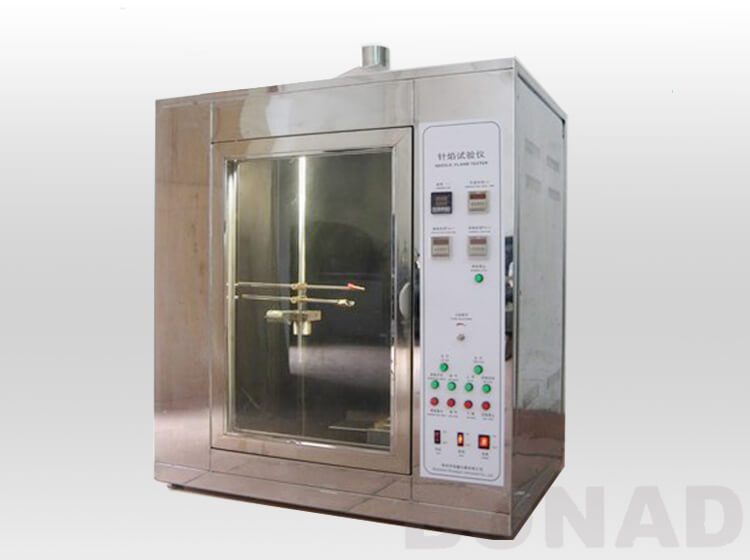

Needle Flame Tester, Needle Flame Test Apparatus
Model:BND-ZY
Product Description
IEC60695-11-5 NEEDLE FLAME TESTER
Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material's ignition risk and fire retardance by a simulation technique the fire.
This product is designed and manufactured according to IEC60695-11-5:2004(GB/T5169.5-2008) Fire hazard testing for electric and electronic products-part 2: Test methods- needle-flame test methods.
Needle-flame Tester’s crust and important parts are made by Stainless Steel, Sculpt daintily, endure smoke corrupt, high automatism, high reliability of key parts of apparatus, numeric shows. Fixture could be adjusted. Test procedure could be controlled automatically which is convenience and reliable.
Detailed Images
| needle burner | the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm, |
| Material | stainless steel |
| burner angle | tilt 45 ° (test) or vertical (adjust the flame height) |
| Application time | 0-999 .9 s ± 0.1s adjustable (normally choose to 30s) |
| Burning duration | 0-999 .9 s ± 0.1s, auto record, manual suspension |
| flame height | 12mm ± 1mm (with a height measurement apparatus) |
| Burn gas | 95% of the butane gas (Pressure：Less than 0.2MP) |
| temperature measurement range | 0 ~ 1000 ℃ |
| flame temperature requirements | from 100 ℃ ± 2 ℃ 700 ℃ ± 3 ℃ rise to the time in 23.5 seconds ± 1 seconds |
| Thermocouple | Φ0.5mm (K type) |
| experimental background | black background |
| test procedure | automatic control |
| reference standard | IEC60695 -11-5-2004, GB/T5169.5-2008 |
| inside dimension | 0.5 cubic meters, stainless steel chassis |
| equipment dimensions | 1000mm wide × 650mm deep × 1300mm high |
| power supply | AC220V ± 5%, 50Hz, 0.3KVA |
