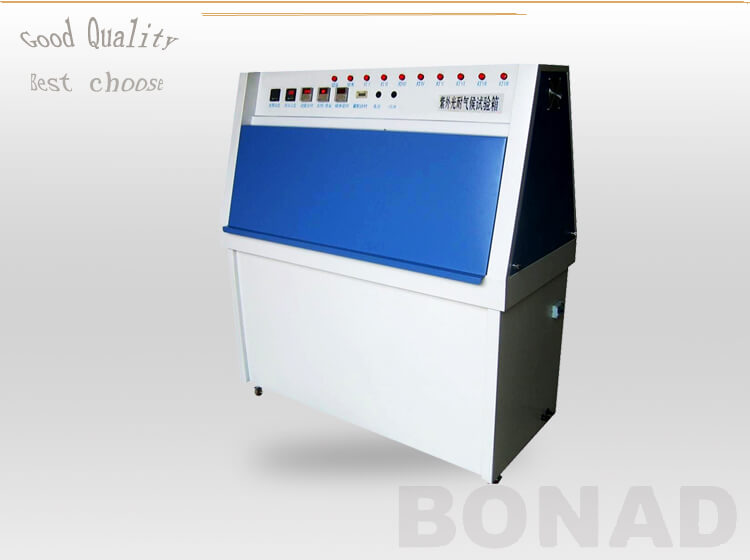

        1. UV-resistant climate test chamber BND-HZW

          This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
          Description

          Product Description:

          Name:UV-resistant climate test chamber

          Type:BND-HZW


          Purpose:

          This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.

          Structure:

          1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

          2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.


          Product Spec.and Technical parameter table

          model

          BND-ZW-01

          Stidio size(mm)

          D

          450

          W

          1170

          H

          500

          Dimensions

          D

          660

          W

          1330

          H

          1130

          Temperature Range

          RT+10ºC-70ºC

          Humidity Range

          75-98%RH

          Humidity uniformity

          ±2%

          Temperature uniformity

          ±2ºC

          Temperature fluctuation

          ±0.5ºC

          Standard dimension of sample

          75*150mm or 75*300mm

          water tank depth

          25mm,automation

          Effective radiation area

          900*210mm

          UV Wavelength

          UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

          Test time

          0-999H adjustable

          Outer /Inner material of box

          SUS304

          Black Panel Temp

          40ºC-65ºC

          power supply

          380V

          Power Output

          4KW

          Standard Configuration

          A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

          Standards Applied

          ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
