Product Description：

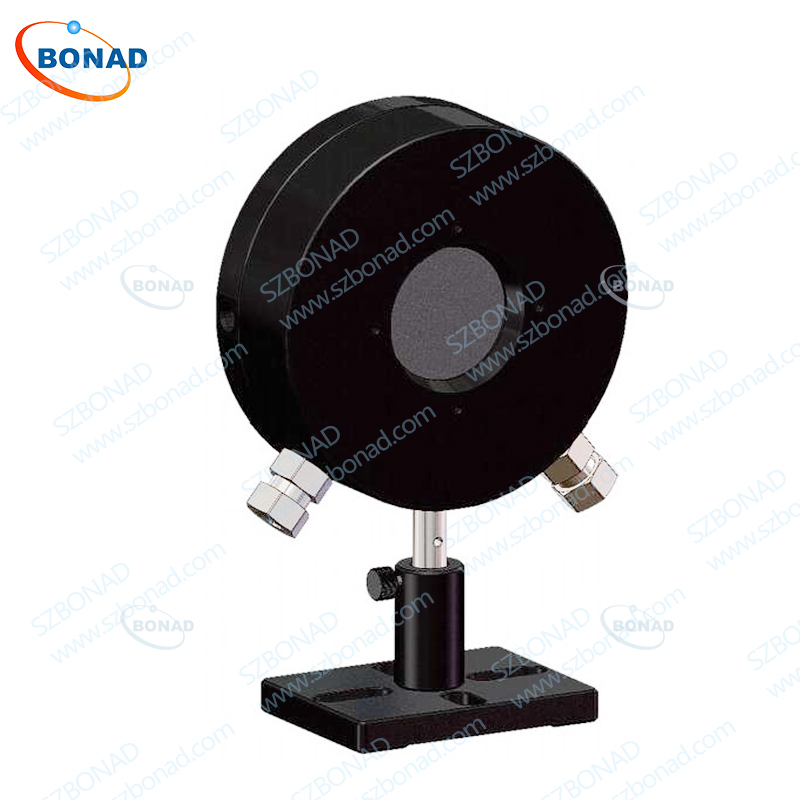

Name：100W-3000W water-cooled laser power sensor
Type：BND-3000W-D50-YJ
The BND-3000W-D50-YJ is a water cooled thermal power sensor is designed for very high powers with Φ50 mm aperture. it can measure power from 100 w to 3,000 W. it has a deflecting cone and annular absorber that withstands high power densities to 1.7 kW/cm. lt covers the spectral range from 266 nm to 10.6um.
Power sensor Features:
1. Continously laser power measurement,up to 5000W;
2. High linearity,sectional calibration is not required;
3. High absorption;
4. 50mm aperture
5. Water Cooled;
6. V-Groove is optional.
Model | BND-3000W-D50-YJ |
Absorption | 90% |
Wavelength Range | 266nm-10.6um |
Power Range | 100W-3000W |
Scale | Auto |
Aperture | 50mm |
Power Resolution | 0.1W |
Response Time(0-95%) (a) | 5s |
Calibration Uncertainty | <4% |
Non-linearity | <±1% |
Accuracy | ±4% |
Damage Threshold (b) | 1.7kW/cm2 @3kW |
Cooling | water cooled |
Recommended Water Flow Rate@Full power(c) | 5L/min |
Dimension | Φ 143×55mm |
Cable Length | 5m |
Connector Type | 90% |
Notes:
(a).Time from zero to 95% of stable value;
(b).Recommended laser diameter:>25mm@5kW,>20mm@3kW;
(c)Recommended Water temperature range:18-30°C;Water temperature change rate:<1℃ /min.

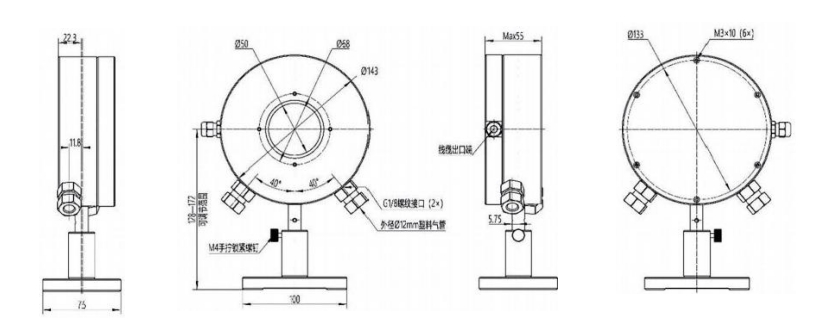

Dimension:
