PYR20 Solar Radiation/Pyranometer Sensor

PYR20 pyranometer, or solar Radiation Sensor, measures global radiation of both direct and diffusion of solar irradiance. The internal temperature compensation minimizing the error caused by heating of the sensor. Each sensor is calibrated against Eppley Precision Spectral Pyranometer and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc.

Product Description：

Name：PYR20 Solar Radiation/Pyranometer Sensor

Type：BND-PYR20

■ Measurement range to 2000W/m2, Spectral range 400-1100nm

■ Output interface with RS485, Voltage or Current

■ Temperature compensated

■ Level indicator and spring loaded for installation

■ Water proof to IP66 can be used outdoor

■ High accuracy and consistency with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection

Specifications

Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	Analog Current 4-20mA (Load Resistor<500ohm)	RS485 Modbus-RTU
Power Supply	3.9-30V/DC	12-30V/DC	3.9-30V/DC
Power Consumption	7mA@24V DC	30mA@24V DC (with 20mA output signal)	7mA@24V DC
Pyr Range	Range:0-2000W/m2, Accuracy 5%, Resolution:1W/m2
Spectral Range	400-1100nm
Direction Error	Percent of reading: ±3% (0 – ±70°); ±10% (±70 – ±85°)
IP Ratings	IP66
Operating Temperature	-40~85℃
Installation	Screw hole * 3
Cable Length	2 meters, or Customize

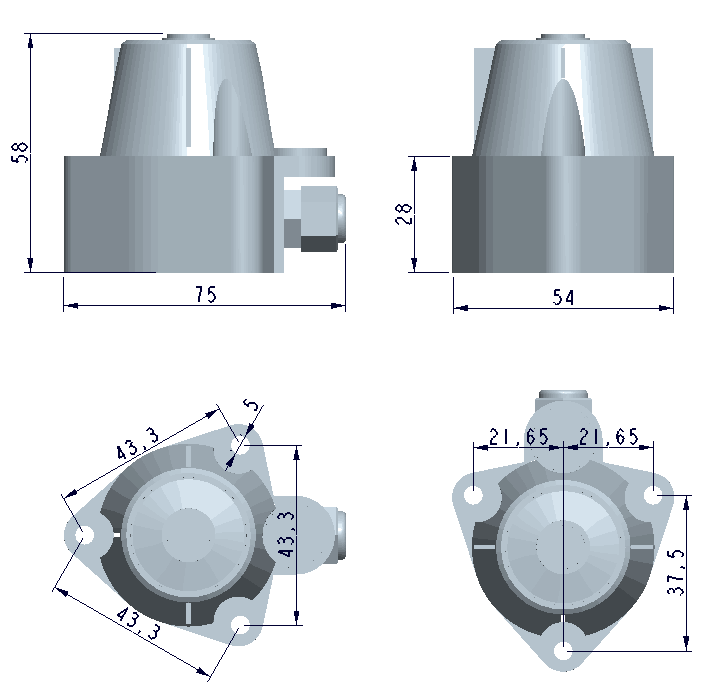

Dimension	755558mm

Parameters	Code	Comments
Code 1:Product Series	PYR20	PYR20 Pyranometer series
Code 2: Range	A B	2000W/m2 Customize
Code 3: Power Supply	A B	3.9-30V DC 2.7-16V DC
Code 4: Output Interface	A B C D E F G	Analog Voltage 0-2V Analog Current 4-20mA RS485,Modbus-RTU RS485,Modbus-RTU & Analog Voltage 0-2V RS485,Modbus-RTU & Analog Current 4-20mA SDI-12 Customize
Code 5: Cable Length	002 XXX	2 meters Customize, XXX is required cable length(Unit: meter)
Ordering Code Example: PYR20 pyranometer sensor,Range 2000W/m2,Power Supply 3.9-30V DC,Output Interface RS485 ModbusRTU,Cable length 5 meters.Ordering Code is:PYR20-AAC005
